Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Applicable Industries: Farms

Number of Rows: 2, 4, 5, 6, 7

Showroom Location: None

Condition: New

Type: Wheat Seeder

Application: wheat fertilizer seeder

Use: wheat fertilizer seeder

Weight: 1140kg

Dimension(L*W*H): 1820mm*2910mm*1360mm

Warranty: 1 Year

Key Selling Points: High Safety Level

Marketing Type: New Product 2020

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: Gear, Bearing

After Warranty Service: Video technical support, Online support, Spare parts

Local ServiceÂ Location: Egypt, Turkey, France, Germany, Mexico, Thailand, Australia

After-sales Service Provided: Video technical support, Online support

Información básica

Pago y Envío Términos

Packaging Details: Iron frame, iron crate or customized

Supply Ability: 200 Set/Sets per Month

Descripción de producto

Product Description

Xinle Company possesses a Disc sawtoothed furrow opener with the complete intellectual property right, which is used asthe upgrade product of the rotary blade. It can complete chopping, separation,furrowing,soilpulverizing,fertilizingsowing, earthing, pressing, ridging and other procedures of straw and rhizomes at planted seedling strips at a time.

In order to adapt to the actual situation in different regions, users can add full rotary devices and Beidou navigation system,and realize multi-purpose utilization according to the needs of the equipment itself, thus reducing costs and improving efficiency

DISC SAWTOOTH COLTER

It adopts the patented technology
developed by our company, with
completely independent intellectual
property rights, and it is a new-genera
tion product upgraded on the basis of
rotary blade. A certain included angle is
formed through internal knife colter
and external knife colter, to regrind the
residual straws and turn them over to
the back ridges, so that the seeds will
be implanted on clean soil, to
guarantee the seeding ratio, and
reduce the dead seedlings, stilted
seedlings, and sparse seedlings.

STEPLESS VARIABLE
TRANSMISSION

It can guarantee a larger and more
accurate range of sowing quantity
adjustment, and it applies to the
sowing quantity adjustment of
difffferent crops like wheat, corn, rice,
soybean, sorghum, oilseed rape, and
millet.

PRESS WHEEL

The soil is compacted, to protect the
soil from the wind erosion and water
erosion of soil as well as the
destruction of granular structure
caused by turning-over, and also the
seeds and the soil can be connected
closely, to guarantee soil water
storage and preservation, therefore,
creating good environment for seed
germination and growth.

Specification

Item	2BMQF—4/8	2BMQF—5/10	2BMQF—6/12	2BMQF—7/14	2BMQF—8/16
Ditching Device Form	Shoe colter for hard stubbles
Anti-blocking Component	Combination of disc sawtooth trenching cutter and straw throwing board
The Dimension （(L×W×H)）	1600×1670×1250mm	_{1740×1830×1290mm}	1740×2280×1340mm 1740×2180×1340mm	1740×2520×1340mm 1740×2380×1340mm	1820×2910×1360mm
Working Width	1210 mm	1390 mm	2040/1940 mm	2360/2180 mm	2720 mm
Wheat Row Spacing	240×120mm Wide and narrow row	_{220*120mm Wide and narrow row}	240120mm Wide and narrow row 220120mm Wide and narrow row	220120mm Wide and narrow row200120mm Wide and narrow row	220*120mm Wide and narrow row
Wheat metering device	8	10	12	14	16
Soybean metering device	4	5	6	7	8
Soybean Row Spacing	360*360mm Equal rows	_{340*340mm Equal rows}	360360mm Equal rows340340mm Equal rows	340340mm Equal rows 320320mm Equal rows	340*340mm Equal rows
Soybean Row Spacing		210*510mm Wide and narrow row	190*490mm Wide and narrow row	210510mm Wide and narrow row 190490mm Wide and narrow row	190490mm Wide and narrow row 170470mm Wide and narrow row	190*490mm Wide and narrow row
Soybean Plant Spacing	The plant spacing can be adjusted between 98-196 mm in precision sowing，sowing in drill the plant spacing is 24 cm
Wheat Sowing Fertilizer Rows	4 rows	5 rows	6 rows	7 rows	8 rows
Soybean Sowing Fertilizer Rows	4 rows	5 rows	6 rows	7 rows	8 rows
Fertilizer Sowing Quantity	0-1725㎏/hm2 adjustable
Fertilization Depth	Distance below seed side 30-50 mm
Wheat Seeding Quantity	0—450㎏/hm² adjustable
Operational Efficiency	0.2—0.3hm²/h	0.3—0.5hm²/h	0.4—0.67hm²/h	0.53—0.8hm²/h	0.67—1.0hm²/h
Tillage Depth	80—120mm adjustable
Operation Speed	2—5km/h
Cutter Shaft Speed	280—320r/min
Matched Power	25.8—29.4 kw （35—40 hp）	36.8—40.5 kw （50—55hp）	62.5—73.5 kw （85—100hp）	73.5—88.3 kw （100—120hp）	95.6—110.3 kw （130—150hp）
The Total Weight	550㎏	750㎏	800㎏	880/890㎏	1040kg
Driving Mechanism Form	Universal Joints, Gears, Chains

Wheat growth trend

Comparison of Xinle machinery and traditional agronomic effect

Company Profile

FAQ

1. who are we?
We are based in Henan, China, start from 1999,sell to Eastern Asia(25.00%),Africa(15.00%),South America(10.00%),Central America(10.00%),North America(10.00%),Domestic Market(5.00%),South Asia(5.00%),Oceania(5.00%),Northern Europe(5.00%),Southeast Asia(5.00%),Mid East(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Seeder,Design,No-till seeder,no-tillage fertilizer planter,Full back field anti-winding tillage machine

4. why should you buy from us not from other suppliers?
Our company has established a strong talent team, which has always been engaged in R&D and promotion around conservation tillage machine for 20 years, and obtained more than 30 national invention patents, utility model patents and appearance design patents

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,CIP；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Korean,Italian

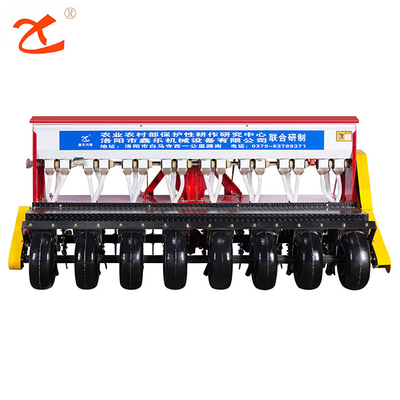

Wheat fertilizer seeder xinle 2BMQF-8/16 supper seeder for wheat planter all back to field anti wrap no-till seeder
