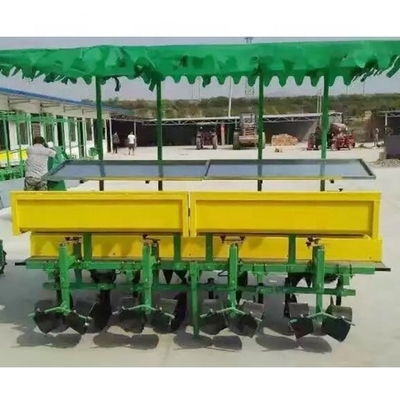

wild cabbage 2 row transplanting machine agricultural machine sweet potato transplanter potato planter onion transplanter
Save effort---Traveling, transplanting, watering automatically, and allowing riding.
Practical---Operating simply, efficiently.
Flexible---The row spacing is adjusted, and it can be customized.
Vegetable transplanter model number |
2ZBZ-2A |
Structure type |
Hand self-propelled |
Dimension (Length * width * height ) |
2700×1400×1380 mm |
Weight |
460 kg |
Mating power |
4.05 kw |
Engine speed |
2000 r/min |
Vegetable transplanter clutch type |
Belt tension |
Driving mode |
Belt drive |
Tread |
800~1100/850~1200 mm |
Wheelbase |
1050~1150 mm |
Tyre model (front/back) |
4.00~10/4.00~7 |
Driving wheel type |
Herringbone |
Vegetable transplanter model |
Duckbill ring style |
Working Lines |
2 |
Vegetable transplanter working Speed |
1~1.5 km/h |
Vegetable transplanter productivity |
0.1~0.13 hm2/h |
Walking speed |
1~2.6 km/h |
Adjustable range of row space |
300,400,500 mm |
Adjustable range of depth |
60~120 mm |
Seedling types and height range |
Hot pepper,tobacco,beet and so on. |
Numbers of operators (including tractor driver) |
3 |
Operating principle and scope of application
2ZBZ-2A self-propelled two lines vegetable transplanting machine possesses many practical functions, including traveling automatically, transplanting, and transverse throw seedling, etc.
The machine is more suitable for working in the soil which the absolute water content is not enough 20%.If exceeding the scope of application, the working performance will be likely to decline and the service life of the machine will be shortened. Especially, the machine is suitable for transplanting of tobacco, pepper, eggplant, tomato, sugar beet, etc nutrition bowl nursery crops, which planting in mountainous areas, hills, Plastic greenhouses, etc.
2ZBZ-2A:2Z indicates machinery of transplanting, B indicates transplanting ware of duckbill hanging cup, Z indicates hanging, 2 indicates rows of transplanting, and A indicates the first improvement.
Shandong Hualong Agricultural Equipment Co., Ltd. was established in 1984.
Its headquarter is located in Hualong Street, Economic and Technological Development Zone, Qingzhou, Shandong province with the floor area of 58 thousand m2 and plant area of 44 thousand m2.
It is the professional production enterprise for Chinese agricultural equipment and livestock machinery, Top 50 enterprise of comprehensive economic strength in Shandong Province, key and leading enterprise of machinery industry in Shandong Province, and high-new tech enterprise in Shandong Province.
The company emphases innovations, and has perfect facilities for research and inspection and testing, it cooperates with the universities and colleges, research institutes such as Tobacco Research Institute of Chinese Academy of Agricultural Sciences, Soil and Fertilizer Institute of Chinese Academy of Agricultural Sciences, Agricultural Machinery Institute, Shandong Agricultural University, Nanjing University of Aeronautics and Astronautics, Henan Academy of Agricultural Sciences, Agricultural University of Hebei, Weifang Engineering Vocational College to develop the research projects, and establishes the Professor (PhD) workstation and student internship base in the company. It has passed the agricultural machinery major special achievement verification of China Tobacco Corporation. And now, it is performing the perfection and promotion of the full mechanization for cotton, sugar beet, potato, tomato, pepper and etc.
•Provide professional person to communicate with you and serve you whole course.
•Provide strict quality check for each part, each process before export.
•Provide complete technical guide after-sale services.
•Provide the model you demanded according to your drawing or sample.
•Provide the best products and all-aspect services are our eternal tenet.
We have advanced production line and text implement.
The company has passed the 3C certification as well as ISO9001, ISO/TS16949:2009 certification. It is among the first batch of qualified drying room suppliers of China Tobacco Corporation.
